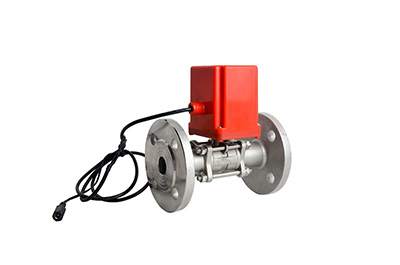

Stainless electric ball valve jointed by flange

Stainless electric ball valves are a two-way valve made using 316L stainless steel. They are compatible with an extensive array of media, including water, air, oil, acid and alkali corrosive materials, and low viscosity fluids in the chemical industry.

These valves open or shut flow passages through the rotation of the output drive. Compared to other valve types, this valve is capable of withstanding a higher meter, higher pressure, higher temperature, and has a wider media compatibility.

Product description

*Product Matrix

Runxin Valve

Water yield

Ceramic Ball Valve

nominal outside diameter

Performance Parameters

Operating pressure: 0-1.6MPa
Operating temperature: 0-60℃
Material for valve stem: 316L（Harley alloy steel B or C is available upon request.)
Seals material: EPDM or Fluororubber(optional)
Protection class: IP65

Stainless electric ball valve jointed by flange

Stainless Electric Ball Valve with flanged connection	Nominal diameter	Wiring type	Open/close time	Input voltage	Motor power	Actual power
	Q941413-20	DN20	12.5s/3s	6V/12V/24V	2W-4W	0.4W-2.5W
	QQ941413-25	DN25	3s	12V/24V	2W-4W	0.4W-2.5W
	Q941413-32	DN32	7.5s	12V/24V	6W-10W	2W-5W
	Q941413-40	DN40	7.5s	12V/24V	6W-10W	2W-5W
	Q941413-50	DN50	7.5s	24V	16W	6W
	Q941413D-65	DN65	7.5s	36V	32W	16W
	Q941413D-80	DN80	7.5s	36V	45W	21W
