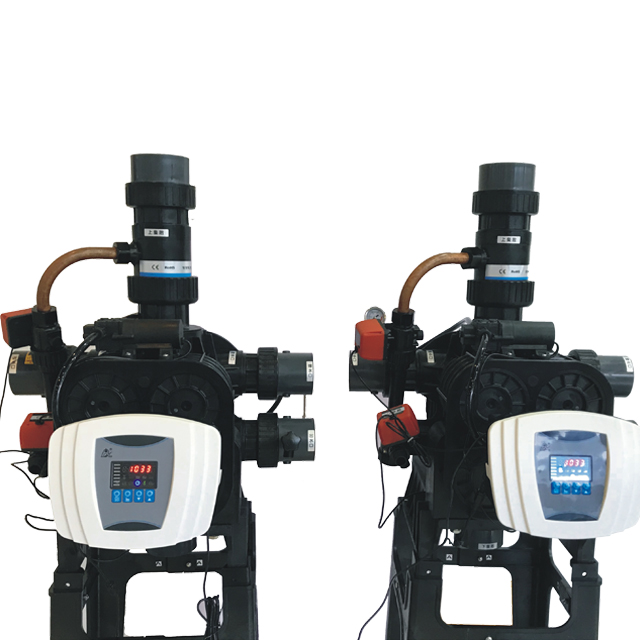

F112A5 Twin Alternating Softeners Valves

Model	F112A5 (17640)
Inlet/outlet	DN65
Drain	DN65
Brine line connector	3/4 "M
Top and bottom distributor basket	DN80
Flow rate	40m3/h
Tank	φ15002400/φ18002400
Regeneration	Up-flow
Control type	Meter type
Water pressure	0.2-0.6Mpa
Water temperature	5-50℃
Water turbidity	＜5FTU
Ambient temperature	5℃~50℃
Power adapter	Input AC100~240V/50~60HZ OutDC24V, 4A

Product description

*Product Matrix

Runxin Valve

Water yield

Ceramic Ball Valve

nominal outside diameter

Featuring a flow rate of 40m3/h, the F112A5 automatic softening valve comes with 4 ports in a T-configuration on the valve body. The unfiltered water is brought in from the pump port and is then sent to different passages for treatment. These passages are easily control through pushing or pulling of hydraulically balanced pistons on the valve, thus achieving backwash, brine and slow rinse, fast rinse, and brine refill.

Two F112A5 valves form a one in service and on-standby system.

The F112A5 is equipped with a booster pump that allows for normal piston operation when the inlet pressure is under 0.2MPa. It is often used in boiler softening systems, RO pretreatment and other water treatment systems.
