61240(F112AS)

Model	F112AS（61240）
Handwheel material	Plastic
Mount type	Top mount
Inlet/outlet	DN65
Drain	DN65
Brine line connector	3/4" M
Mounting base	Top mount，Top and bottom distributor basket DN80
Riser pipe	Top mount，Top and bottom distributor basket DN80
Flow rate	40m3/h
Filter tank	36"--63"
Water pressure	0.2-0.6Mpa
Water temperature	5-50℃
Water turbidity	Down-flow regeneration＜5FTU
Application	Ion exchange equipment, water treatment system, RO pretreatment system

Product description

*Product Matrix

Runxin Valve

Water yield

Ceramic Ball Valve

nominal outside diameter

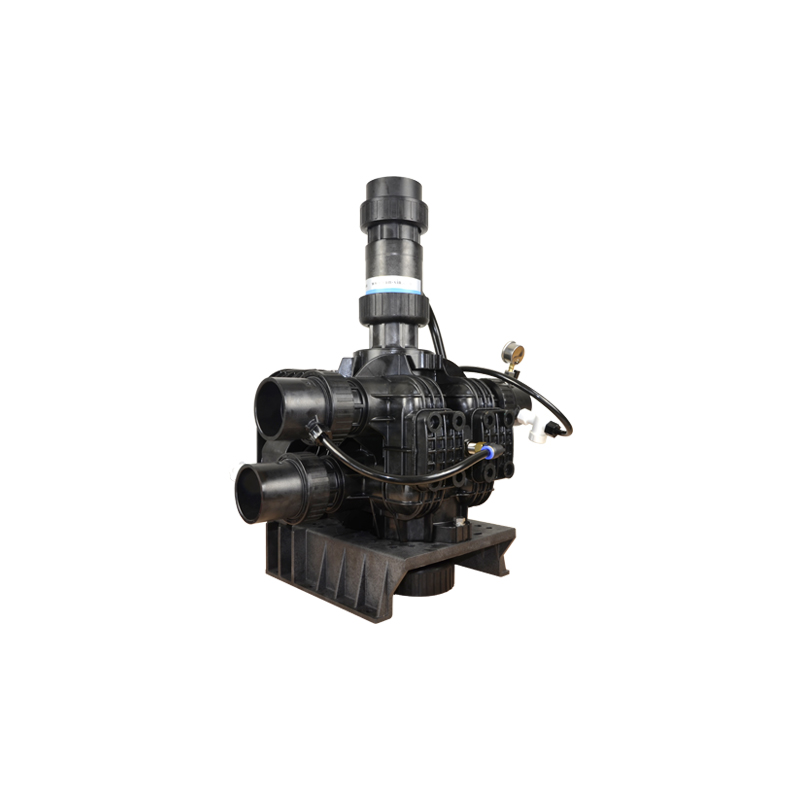

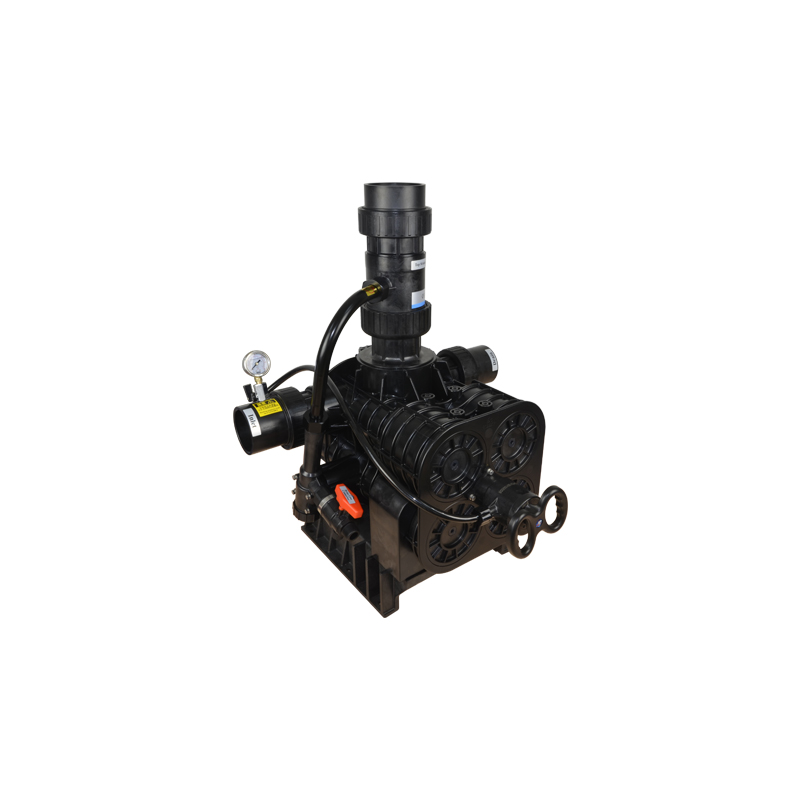

F112AS Manual Multiport Softener Control Valves

Operating with a flow rate of 40m3/h, the F112AS manual multiport softener control valve comes with 4 ports in a T-configuration in the valve body. Unfiltered water is brought in from the pump port, which is then sent to different passages for treatment. The flow passages are easily controlled through pushing or pulling the hydraulically balanced pistons in the valve. Adjusting these pistons, enables the valve to be used for backwash, brine and slow rinse, fast rinse, and brine refill functions.
