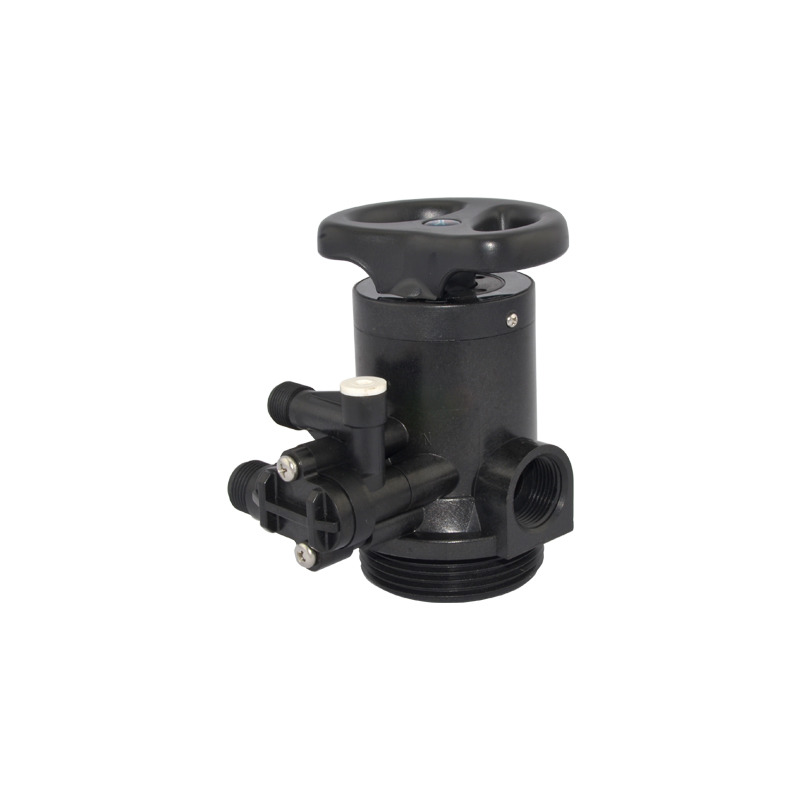

71202(F64C)

Model	71202(F64C)
Material of handle	Plastic wheel handle
Installation	Top -mounted
Inlet/outlet	3/4" F
Drain	1/2" M
Brine line connector	3/8" M
Base	2.5"—8NPSM
Riser pipe	1.05" OD
Water treatment capacity	2 m3/h
Tank diameter range	6"~12"
Water pressure	0.15MPa～0.6MPa
Water temperature	5℃～50℃
Water turbidity	Down-flow regeneration＜5FTU
Application	Residential softening system Ion exchange system Boiler softening water system RO pretreatment softening system

Product description

Product Characteristics

Simple structure and reliable sealing
It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing. It combines with Service, Backwash, Brine & Slow Rinse, Brine Refill and Fast Rinse.
No water pass the valve of single tank type in regeneration.
Various methods for installation
The valve can be top-mounted and side-mounted (Should be used with the side-mounted connector).
Handle alternatives: Metal and plastic
